Enabling Subversion on Oracle BPM Studio 10.3

Are you using Subversion and wanted to import your BPM Studio 10.3 project to Subversion repository for sharing amongst your project team?

Here are quick and dirty steps to setup subversion (SVN abbreviated) connection and importing the BPM Studio project into the version control.

Sharing BPM project


Click the context menu (mouse right click) on the main level of your BPM project.




Choose "Share Project..."




Choose SVN as versioning repository type.




Enter the URL for the repository. In this example I used Windows based VisualSVN server with https protocol. You might want to point this to your repository URL or subfolder under it. Please note that you will have the possibility to define the BPM project folder later on (e.g. if you wanted to use the "trunk" -practice with subversion).

Depending on the security settings you might need to enter username / password for the repository.




Either let the wizard automatically use the BPM project name as folder name or define your own folder name (e.g. when using trunk's). In my sample I let the wizard derive the folder name from the BPM project name.




Ready to rock. Enter the comment for the folder name. Please note that at this point the wizard will not commit the resources to the repository. You will need to commit the files later. Press Finish.




Sharing the project...




The synchronization perspective view will show all the source code for the project. If you wanted to commit all the changes you can do it in the next step, after pressing "Yes".




If you pressed "Yes" you will get this perspective. You could commit the changes (your BPM project source code) from this Eclipse perspective, but in my tutorial I switch to BPM perspective and commit the changes directly there.

Switching to BPM Perspective




Look at Eclipse top right corner. To switch back to BPM Perspective, press the perspective Icon and choose Other...




Choose BPM (default) and you will get the BPM design view back.




From the log window you can see that only the project folder was created in the first phase.



Committing Changes




Now when you really want to commit all the BPM project source files to version control, you should choose the project context menu Team -> Commit...




Commit wizard will show you all the files that are changed since the original check out. Since this was the very first import, you will see all the BPM project files marked as changed. Enter a propert explanation for the project and just press Ok to commit the changes.




Status window to show the files being committed.




After the commit, you will see all the files committed in the log window.




(Optional) Looking at SVN repository you wout see the BPM project source files (this application is only available if you have access to server having the subversion repository).

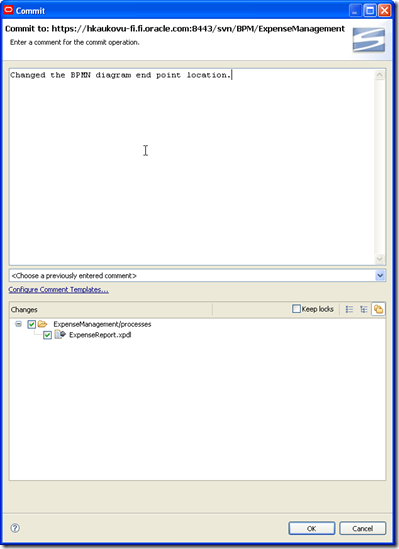

If you made any change in the BPM project and chose Team -> Commit... the wizard will show all the files affected by your change. You should give a description of your change and press Ok to submit the changes to version control.



That's it, very basic introduction to subversion and Oracle BPM Studio 10.3.

20.1.09

Enforcing WebLogic 10.3 Admin Console to use Finnish HST Card Authentication

By default WebLogic admin console is deployed on the same port as other applications, non-encrypted HTTP traffic, and using username and password as authentication.

To give the highest level of security on the admin console here are some steps to take:

  1. Change the admin console from the standard port to SSL secured admin port
  2. Enable Two-Way Authentication so that only clients with valid digital certificate can access the admin console

In Finland, one of the easy ways to get official  client certificate is to use your HST smart card for authentication. To use that in your workstation, you need smart card reader and software for that. Software can be downloaded free from http://www.fineid.fi/ (Follow the link "Lataa kortinlukijaohjelmisto").

In this article I've tried to summarize steps to enable WebLogic 10.3 server two-way SSL setup with HST client certificate.

To summarize the steps:

  1. Create self signed server certificate and store if into custom keystore file
  2. Extract VRK's trusted CA certificates and import them to the custom keystore file
  3. Setup custom keystores (for server identity and trust keystore) in WebLogic server
  4. Create user that corresponds the HST card username. Assign Administrative group to the user.
  5. Change management port
  6. Change admin console authentication method from FORM to CLIENT-CERT
  7. Test

Please note that at some point you will get a browser error stating that the server certificate is not valid. This is because of using self-signed server certificates. If you used "official" server certificates e.g. from Verisign you wouldn't get these errors. When using self signed certificates, you just need to accept the error and import the certificate on browser keystore. This error would only happen the first time(s) accessing the site protected with https (SSL).

Warning: These instructions are experimental and you should make full backup of your environment before trying anything in here. DO NOT TRY THIS IN PRODUCTION BEFORE MAKING SURE IT WORKS IN DEVELOPMENT AND TESTING FIRST.



Extracting the Trusted CA Certificates from HST Card

You will need the trusted CA (certificate authority) public certificates later in WebLogic key storage to verify the client HST card certificates. If you don't have those trusted VRK (Väestörekisterikeskus) certificates yet, here is one way to get them:

1. Open up the smart card application (here mPollux as an example):


Navigate to "Luotetut varmenteet" and first choose "VRK Gov. Root CA":


Double click on the certificate and you will get this window:


Press Details -tab.


Press "Copy to file..."


Press next.


Choose Base-64 encoded X.509 (.CER)

Press Next.


Enter the name of the certificate file and press Next.


Press Finish.


After successful export, you should have an OK window.



Repeat the same for the "VRK Gov. CA for Citizen Qualified Certificates".



After these two steps, you should have files with names e.g. vrk_root.cer and vrk_citizen.cer in your chosen folder. These are base64 encoded text files.



Creating a Self Signed Custom Keystore for Two-way SSL

Now we create a custom keystore to store the identity of the WebLogic server certificate and also to include the VRK public certificates so that WebLogic can verify the HST card client certificate against them.

Here is an example (server certificate for 10 years = 3600 days):

keytool -genkey -dname "cn=localhost, ou=Oracle Finland, o=Oracle, c=FI" -alias localhost -keypass mypassword

-keystore D:\product\JDEV11\wlserver_10.3\server\lib\harri.jks -storepass mypassword -validity 3600

Above command (by the way, keytool is found from the Java binaries) creates a keystore file named "harri.jks". You can list the contents of the file with following command:

keytool -list -storepass mypassword -keystore harri.jks



Now, import the VRK trusted certificates next:

keytool -import -file D:\temp\vrk_root.cer -trustcacerts -alias VRK_ROOT -keystore harri.jks
keytool -import -file D:\temp\vrk_citizen.cer -trustcacerts -alias VRK_CITIZEN -keystore harri.jks

Now you should have the keystore ready for two-way authentication. Next step is to configure WebLogic server to use this keystore.



Setting up the custom keystores in WebLogic

Navigate to admin console: Home >Summary of Servers >DefaultServer

Choose Configuration tab and Keystores tab.


Choose "Custom Identity and Custom Trust" from the "Keystores" popup list.

Specify the exact path to the keystore you just created above, keystore type "jks" and enter the password for the keystore.

Press Save.

Press "SSL" tab.


Choose "Private Key Alias" as the same you used in earlier chapter "Creating a Self Signed Custom Keystore for Two-way SSL".

For example if you used:

keytool -genkey -dname "cn=localhost, ou=Oracle Finland, o=Oracle, c=FI" -alias localhost -keypass mypassword -keystore D:\product\JDEV11\wlserver_10.3\server\lib\harri.jks -storepass mypassword -validity 3600'

you should enter "localhost" as the alias here to mark the unique key to the server certificate.



Press the "Advanced" link.


Change "Two Way Client Cert Behaviour" to wanted value, like "Client Certs Requested But Not Enforced" or "Client Certs Requested And Enforced".

Press Save and reboot the WebLogic server.



What Is My HST Card Username?

To see your username in the Finnish Government ID card, you can do it e.g. by looking at the smart card reader application. In my example I am using mPollux software and I can launch the software by choosing the context menu from mPollux tray icon (yellow icon below):



Choose the first option to start the application.

From the "Lukijat ja kortit" -tab choose the card reader -> Käyttäjän varmenteet -> todentamis- ja salausvarmenne. Double-click on that item.


You will see following window, where the "Issued to:" field will show the username you should write down for later use.


Create User and Assign Admin Privileges

Navigate to Security Realms page on admin console.


Press "myrealm" (or whatever you have in your server) link.


Press "New" to enter new user.


Enter the username that is stored in your HST card on "Name" field. You can set whatever password you like, but this is not used when enforcing client certificates. If you don't know the value to put on "Name" -field, please follow the chapter "What Is My HST Card Username?".

Assign the needed Groups to the user:


You would need at least "Administrators" group to enter the admin console application.



Change management port

To ensure security, you should change the admin console to use administration port (9002 or whichever you choose). This is done from Home -> DefaultDomain -> Configuration -> General.


After the port change, the URL is moved to this admin port right away.

Change Console Authentication Method

By default WebLogic admin console uses form based authentication (username / password). To enforce using client certification from the Finnish HST card you need to change console application slightly.

In this example I use JDeveloper 11.1 and the WebLogic that is shipped with it. On this installation, console application is found under:

D:\product\JDEV11\wlserver_10.3\server\lib\consoleapp

web.xml file is here

D:\product\JDEV11\wlserver_10.3\server\lib\consoleapp\webapp\WEB-INF\web.xml



Edit web.xml as follows. Comment out the FORM based authentication method and replace it with CLIENT-CERT method, like this:

  <login-config>
<!-- Commented out
    <auth-method>FORM</auth-method>
    <form-login-config>
      <form-login-page>/login/LoginForm.jsp</form-login-page>
      <form-error-page>/login/LoginError.jsp</form-error-page>
    </form-login-config>
-->
        <auth-method>CLIENT-CERT</auth-method>
  </login-config>

You could also change the auth-method to value “CLIENT-CERT,FORM” to fall back to username / password authentication if client certificate authentication fails.

After the changes, restart WebLogic server.



FireFox / Mozilla Setup

If you used mPollux and FireFox or Mozilla, you need to setup the security device manually (this is done only once). You do this by choosing the Tools -> Options -> Advanced and pressing "Security Devices".


Press "Load" to choose to load a new security device.


Give it a name and choose file. With mPollux it looks something like:


If you needed to do this setup, just to make sure, exit the browser and startup again.

Test Run

Close all browser windows and remove the Finnish HST card from the card reader.

Enter the HST card into the smart card reader.

Open up a browser (IE, Mozilla, FireFox ...) and enter the console URL:

https://localhost:9002/console



You should now get the smart card PIN window. An example when using Fujitsu DigiSign software, is below:


When entering the PIN code, you are allowed to enter the console, if your username is assigned to Admin group:


15.1.09

New Extensions Available from JDeveloper Official Update Center

During the years I've developed few JDeveloper extensions for ESB, BAM, Python (migration from 10.1.2) and JDev Projects. These extensions are now available from the official third party extensions exchange listed here:

http://www.oracle.com/technology/products/jdev/101/update/exchange.xml

To install the extensions, you just need to choose Help -> Check for updates and all the available extensions are listed for installation.
